water treatment
|
|
|
sulfur removal
|
 |
 |

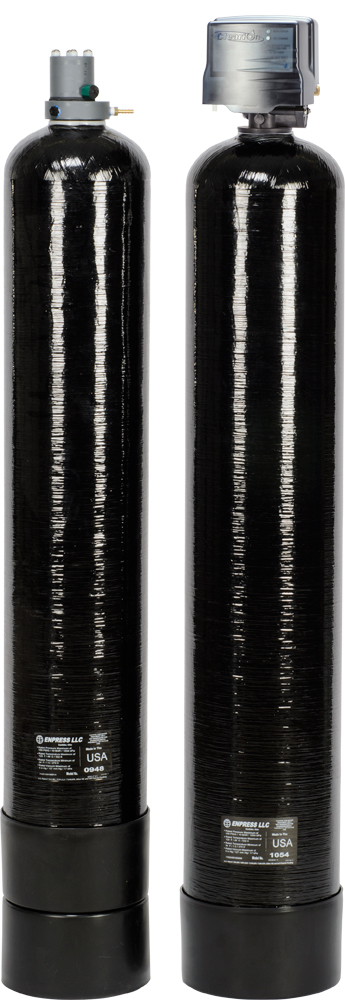

Clearion 300 HD Iron & Sulfur Treatment
The concept of air injection for the reduction of iron, manganese and sulfur gas is not new. In most cases, these contaminants can be treated in this manner without the use of chemicals, such as chlorine or potassium permanganate. Clearion Water Technologies introduces its own combatant – The 300HD Series. Several new ideas are incorporated in the 300HD Series Water Treatment System. Air injection and free air venting are accomplished through a common manifold assembly which simplifies installation and service. The 300HD Series manifold assembly is mounted on a large air mixing tank that triples the amount of air contact and exposure time A full 1" FNPT inlet and outlet is provided to install the 300HD Series tank between the well pump and pressure tank.
|
This exposes the 300HD Series tank to full pump flow for increased air draw, air mixing and reduced plugging problems. Oxidized contaminants then enter the 300HD Series filter where they are removed by the Multi Blend filtration media. The Multi Blend is a proportioned mix of three proven filter medias to provide optimum performance with wide application potential. The filter is automatically maintained by the 300 Series control valve that provides the advantages of adjustable cycle times and high backwash flow capability in a high tech electronic valve with simple programming and battery back-up.
Features
- Exclusive Clearion 300 Series control valve
- Easy electronic programming
- 9 volt battery back-up
- Slide cover (no tool access)
- Rain tight cover seals out insects and weather
- Softens water and removes objectionable chlorine taste and odor
- 3/4" FNPT stainless steel bypass valve; 1" option
- High backwash capacity
- Vortech Distributor
- Designed for use with submersible pumps
- Filtration available with: Multi Blend
